2-leg L-shaped Dual Motor Sit-Stand Desk M07-23RL Left or Right - Made Easy! from china(chinese)

M07-23RL

2-leg L-shaped Dual Motor Sit-Stand Desk

Left or Right - Made Easy!

Description

The M07-23RL has been engineered to provide a single solution for building a Left or Right Hand Return Sit-Stand Desk. Conventional crossbar design offers support for desktop weight primarily in the main desk area. Strong motor provides smooth movement. Advanced memory control panel is fully-customizable and operation-friendly design.

Tag:

Color:

Black (AkzoNobel Powder Coat)

White (AkzoNobel Powder Coat)

Grey (AkzoNobel Powder Coat)

Add to Inquiry

Add to Compare

View Series

Duty Calculator

FEATURES

●Easy-Assembly: advanced frame design reduces set-up time while providing long-term stability for confident daily use
●3 Programmable Memory: presets save your desired height
●Motor(s) is(are) Thermal and Overload Protected: for safety and longevity

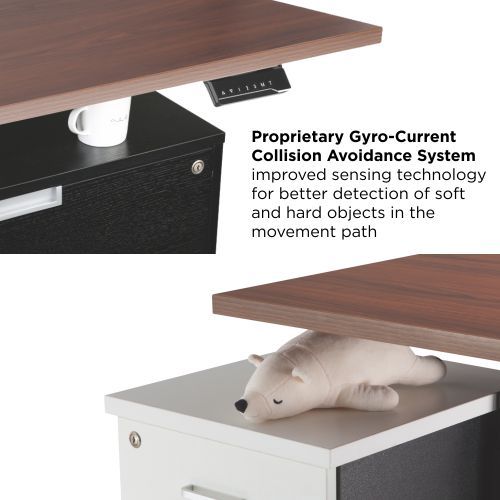

●Programmable Proprietary Gyro-Current Collision Avoidance System: improved sensing technology for better detection of soft and hard objects in the movement path
●Sit/Stand Time Reminder: for regular movement
●Programmable height range: customizes the minimum and maximum height settings to accommodate objects around you, such as under desk cabinets or storage units

Easy-Assembly: advanced frame design reduces set-up time while providing long-term stability for confident daily use
Programmable Proprietary Gyro-Current Collision Avoidance System: improved sensing technology for better detection of soft and hard objects in the movement path
3 Programmable Memory: presets save your desired height
Sit/Stand Time Reminder: for regular movement
Motor(s) is(are) Thermal and Overload Protected: for safety and longevity
Programmable height range: customizes the minimum and maximum height settings to accommodate objects around you, such as under desk cabinets or storage units

SPECIFICATIONS

Product Category:	Electric Sit-Stand Desk
Rank:	Premium
Material:	Steel,Plastic
Dimensions:	1000~1700x900x620~1280mm (39.4"~66.9"x35.4"x24.4"~50.4")
Frame Orientation:	Rectangular
Tabletop Size:	(1100~2200)x(600~1100)mm ((43.3"~86.6")x(23.6"~43.3"))
Tabletop Thickness:	≥18mm (≥0.71")
Weight Capacity:	125kg (275lbs)
Width Range:	1000~1700mm (39.4"~66.9")
Height Range:	620~1280mm (24.4"~50.4")
Column Design:	Reversed Column
Column Segments:	Three Stage Column
Column Size:	60x60、65x65、70x70mm
Leg Quantity:	Two Legs

Frame Color:	Black (AkzoNobel Powder Coat),White (AkzoNobel Powder Coat),Grey (AkzoNobel Powder Coat)
Adjustable Feet Pad:	Yes
Motor Quantity:	2
Power Input:	100~240V
Power Cord Length:	3m (9.8ft)
Max. Speed:	38mm/s
Controller Type:	Button Control Panel
Time Reminder:	Yes
Suggested Operating Temperature:	-5℃~40℃
IP Grade:	IP20
Certification:	CB,CE,FCC,PSE,RCM,UKCA,UL
Accessory Kit Package:	Normal/Ziplock Polybag
Controller Type:	CT07
