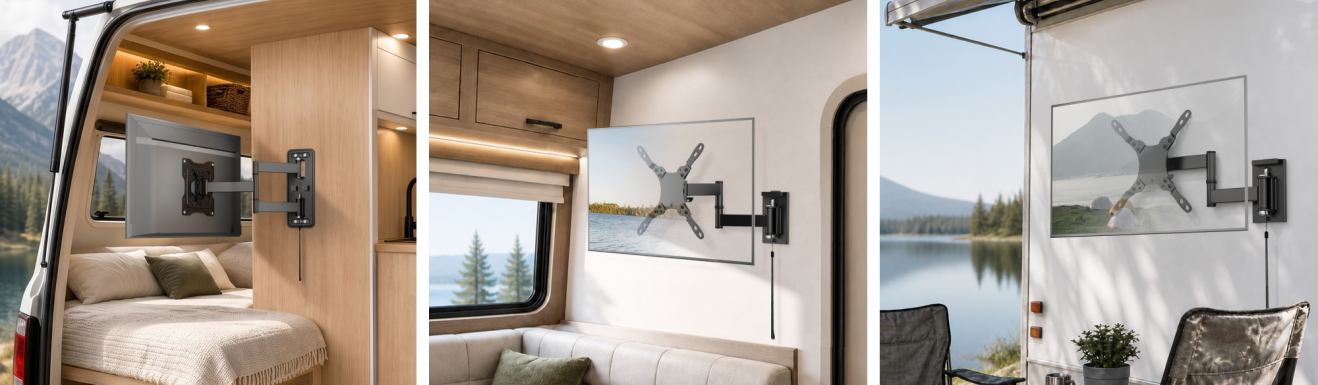

LPA96 Series

Lockable Full-Motion RV TV Wall Mounts

Lockable Full-Motion RV TV Wall Mounts LPA96 Series
LPA96-222
Lockable Full-Motion RV TV Wall Mount with Extended VESA Lockable Full-Motion RV TV Wall Mount with Extended VESA
  • Dimensions: 348x221x244mm (13.7"x8.7"x9.6")
  • Fit Screen Size: 13"-43"
  • Fit Curved TV: No
  • VESA Compatible: 75x75, 100x100, 100x200, 200x100, 200x200
  • Max. Mounting Hole: 200x200
  • Weight Capacity: 15kg (33lbs)
  • Strength Tested: 2 Times Approved
  • Profile: 87~348mm (3.4"~13.7")
  • Tilt Range: +3°~-12°
  • Swivel Range: +90°~-90°
  • Screen Level: +2°~-2°
  • Installation: Wooden Wall
LPA96-223
Lockable Full-Motion RV TV Wall Mount Lockable Full-Motion RV TV Wall Mount
  • Dimensions: 472x224x324mm (18.6"x8.8"x12.8")
  • Fit Screen Size: 17"-43"
  • Fit Curved TV: No
  • VESA Compatible: 75x75, 100x100, 200x100, 200x200
  • Max. Mounting Hole: 200x200
  • Weight Capacity: 30kg (66lbs)
  • Strength Tested: 3 Times Approved
  • Profile: 68~472mm (2.7"~18.6")
  • Tilt Range: +5°~-15°
  • Swivel Range: +90°~-90°
  • Screen Level: +3°~-3°
  • Installation: Wooden Wall
LPA96-443
Lockable Full-Motion RV TV Wall Mount with Extended VESA Lockable Full-Motion RV TV Wall Mount with Extended VESA
  • Dimensions: 478x435x435mm (18.8"x17.1"x17.1")
  • Fit Screen Size: 17"-65"
  • Fit Curved TV: No
  • VESA Compatible: 75x75, 100x100, 200x100, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400
  • Max. Mounting Hole: 400x400
  • Weight Capacity: 30kg (66lbs)
  • Strength Tested: 3 Times Approved
  • Profile: 74~478mm (2.9"~18.8")
  • Tilt Range: +5°~-15°
  • Swivel Range: +90°~-90°
  • Screen Level: +3°~-3°
  • Installation: Wooden Wall
click to view product pictures in table below
Item NO. Dimensions Fit Screen Size Fit Curved TV VESA Compatible Max. Mounting Hole Weight Capacity Strength Tested Profile Tilt Range Swivel Range Screen Level Installation
Lockable Full-Motion RV TV Wall Mount with Extended VESA
LPA96-222 		348x221x244mm (13.7"x8.7"x9.6") 13"-43" No 75x75, 100x100, 100x200, 200x100, 200x200 200x200 15kg (33lbs) 2 Times Approved 87~348mm (3.4"~13.7") +3°~-12° +90°~-90° +2°~-2° Wooden Wall
Lockable Full-Motion RV TV Wall Mount
LPA96-223 		472x224x324mm (18.6"x8.8"x12.8") 17"-43" No 75x75, 100x100, 200x100, 200x200 200x200 30kg (66lbs) 3 Times Approved 68~472mm (2.7"~18.6") +5°~-15° +90°~-90° +3°~-3° Wooden Wall
Lockable Full-Motion RV TV Wall Mount with Extended VESA
LPA96-443 		478x435x435mm (18.8"x17.1"x17.1") 17"-65" No 75x75, 100x100, 200x100, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400 400x400 30kg (66lbs) 3 Times Approved 74~478mm (2.9"~18.8") +5°~-15° +90°~-90° +3°~-3° Wooden Wall
