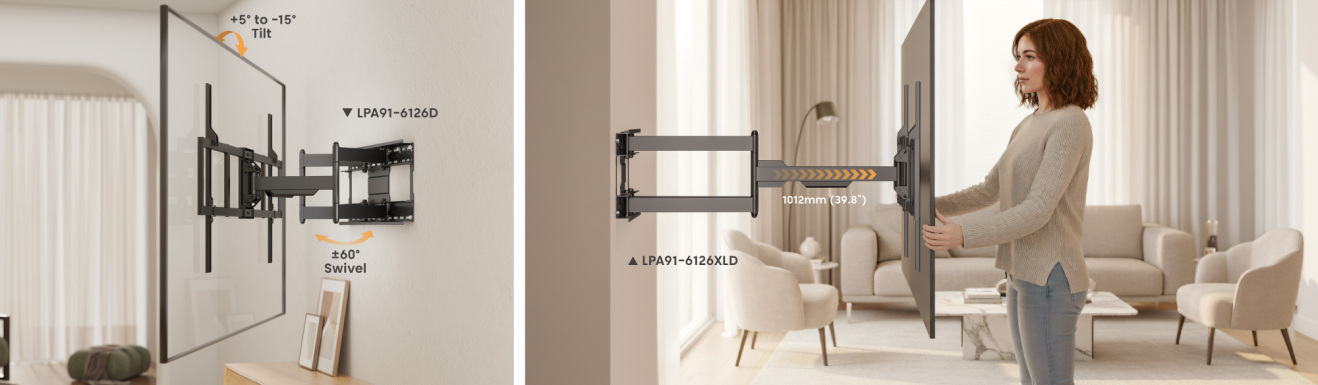

LPA91 Series

Ultra-Reach Heavy-Duty Full-Motion TV Wall Mounts

Ultra-Reach Heavy-Duty Full-Motion TV Wall Mounts LPA91 Series
LPA91-6126D
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount
  • Fit Screen Size: 60"-140"
  • Max. Mounting Hole: 1200x600
  • Weight Capacity: 125kg (275lbs)
  • Profile: 78~635mm (3.1"~25")
  • Tilt Range: +5°~-15°
  • Swivel Range: +60°~-60°
  • Screen Level: +5°~-5°
  • Installation: Double Stud(16inch/18inch/24inch), Solid Wall
LPA91-6126XLD
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount with Super Large Extension Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount with Super Large Extension
  • Fit Screen Size: 60"-140"
  • Max. Mounting Hole: 1200x600
  • Weight Capacity: 125kg (275lbs)
  • Profile: 78~1012mm (3.1"~39.8")
  • Tilt Range: +5°~-15°
  • Swivel Range: +60°~-60°
  • Screen Level: +5°~-5°
  • Installation: Double Stud(16inch/18inch/24inch), Solid Wall
LPA91-683
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount
  • Fit Screen Size: 50"-100"
  • Max. Mounting Hole: 800x600
  • Weight Capacity: 80kg (176lbs)
  • Profile: 81~635mm (3.2"~25")
  • Tilt Range: +5°~-15°
  • Swivel Range: +90°~-90°
  • Screen Level: +5°~-5°
  • Installation: Double Stud(16inch/18inch), Solid Wall
LPA91-683D
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount
  • Fit Screen Size: 50"-100"
  • Max. Mounting Hole: 800x600
  • Weight Capacity: 80kg (176lbs)
  • Profile: 81~635mm (3.2"~25")
  • Tilt Range: +5°~-15°
  • Swivel Range: +90°~-90°
  • Screen Level: +5°~-5°
  • Installation: Double Stud(16inch/18inch/24inch), Solid Wall
LPA91-683XLD
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount with Super Large Extension Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount with Super Large Extension
  • Fit Screen Size: 50"-100"
  • Max. Mounting Hole: 800x600
  • Weight Capacity: 80kg (176lbs)
  • Profile: 81~1010mm (3.2"~39.8")
  • Tilt Range: +5°~-15°
  • Swivel Range: +90°~-90°
  • Screen Level: +5°~-5°
  • Installation: Double Stud(16inch/18inch/24inch), Solid Wall
LPA91-686
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount
  • Fit Screen Size: 50"-100"
  • Max. Mounting Hole: 800x600
  • Weight Capacity: 125kg (275lbs)
  • Profile: 78~635mm (3.1"~25")
  • Tilt Range: +5°~-15°
  • Swivel Range: +60°~-60°
  • Screen Level: +5°~-5°
  • Installation: Double Stud(16inch/18inch), Solid Wall
click to view product pictures in table below
Item NO. Fit Screen Size Max. Mounting Hole Weight Capacity Profile Tilt Range Swivel Range Screen Level Installation
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount
LPA91-6126D 		60"-140" 1200x600 125kg (275lbs) 78~635mm (3.1"~25") +5°~-15° +60°~-60° +5°~-5° Double Stud(16inch/18inch/24inch), Solid Wall
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount with Super Large Extension
LPA91-6126XLD 		60"-140" 1200x600 125kg (275lbs) 78~1012mm (3.1"~39.8") +5°~-15° +60°~-60° +5°~-5° Double Stud(16inch/18inch/24inch), Solid Wall
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount
LPA91-683 		50"-100" 800x600 80kg (176lbs) 81~635mm (3.2"~25") +5°~-15° +90°~-90° +5°~-5° Double Stud(16inch/18inch), Solid Wall
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount
LPA91-683D 		50"-100" 800x600 80kg (176lbs) 81~635mm (3.2"~25") +5°~-15° +90°~-90° +5°~-5° Double Stud(16inch/18inch/24inch), Solid Wall
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount with Super Large Extension
LPA91-683XLD 		50"-100" 800x600 80kg (176lbs) 81~1010mm (3.2"~39.8") +5°~-15° +90°~-90° +5°~-5° Double Stud(16inch/18inch/24inch), Solid Wall
Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount
LPA91-686 		50"-100" 800x600 125kg (275lbs) 78~635mm (3.1"~25") +5°~-15° +60°~-60° +5°~-5° Double Stud(16inch/18inch), Solid Wall
