Rugged Economical Deluxe Mechanical Spring Monitor Arms OEM/ODM China Factory

LDT86 Series

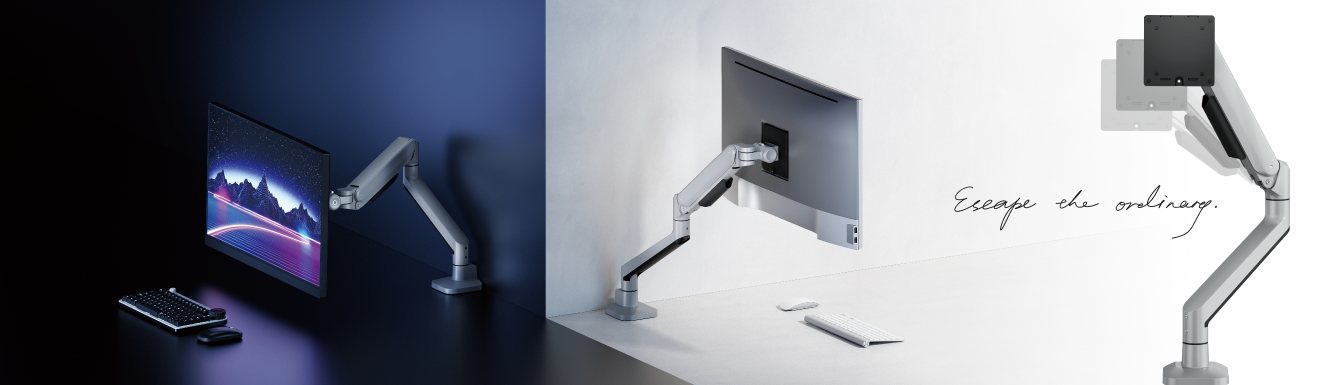

Deluxe Mechanical Spring Monitor Arms

The LDT86 Series Deluxe Mechanical Spring Monitor Arms deliver unmatched quality and performance. Designed with precision, these arms feature a unique one-way bearing for smooth, friction-free tilting of monitors. Rigorous 50,000-cycle fatigue testing guarantees long-lasting durability. Enjoy effortless installation with a quick-release VESA plate and top-mount base design, making setup fast and simple. Experience superior materials and innovative engineering that elevate both your workspace and productivity.

LDT86-C012

Deluxe Mechanical Spring Single Monitor Arm

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-40"
Screen Quantity: 1
Weight Capacity (per screen): 2~12kg (4.4lbs~26.4lbs)
Laptop Weight Capacity: N/A
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: N/A

LDT86-C012UC

Deluxe Mechanical Spring Single Monitor Arm with USB-A/USB-C Ports

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-40"
Screen Quantity: 1
Weight Capacity (per screen): 2~12kg (4.4lbs~26.4lbs)
Laptop Weight Capacity: N/A
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: 1xUSB 3.0 Port, 1xTYPE-C

LDT86-C024

Deluxe Mechanical Spring Dual Monitor Arm

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-35"
Screen Quantity: 2
Weight Capacity (per screen): 2~12kg (4.4lbs~26.4lbs)
Laptop Weight Capacity: N/A
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: N/A

LDT86-C024UC

Deluxe Mechanical Spring Dual Monitor Arm with USB-A/USB-C Ports

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-35"
Screen Quantity: 2
Weight Capacity (per screen): 2~12kg (4.4lbs~26.4lbs)
Laptop Weight Capacity: N/A
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: 1xUSB 3.0 Port, 1xTYPE-C

LDT86-C012P

Deluxe Mechanical Spring Single Monitor Arm (Pole Mounted)

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-40"
Screen Quantity: 1
Weight Capacity (per screen): 2~12kg (4.4lbs~26.4lbs)
Laptop Weight Capacity: N/A
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: N/A

LDT86-C012UCP

Deluxe Mechanical Spring Single Monitor Arm with USB-A/USB-C Ports (Pole Mounted)

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-40"
Screen Quantity: 1
Weight Capacity (per screen): 2~12kg (4.4lbs~26.4lbs)
Laptop Weight Capacity: N/A
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: 1xUSB 3.0 Port, 1xTYPE-C

LDT86-C024P

Deluxe Mechanical Spring Dual Monitor Arm (Pole Mounted)

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-35"
Screen Quantity: 2
Weight Capacity (per screen): 2~12kg (4.4lbs~26.4lbs)
Laptop Weight Capacity: N/A
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: N/A

LDT86-C024UCP

Deluxe Mechanical Spring Dual Monitor Arm with USB-A/USB-C Ports (Pole Mounted)

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-35"
Screen Quantity: 2
Weight Capacity (per screen): 2~12kg (4.4lbs~26.4lbs)
Laptop Weight Capacity: 9kg (19.8lbs )
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: 1xUSB 3.0 Port, 1xTYPE-C

LDT86-C024P-ML

Deluxe Mechanical Spring Dual Monitor Arm & Laptop Holder (Pole Mounted)

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-35"
Screen Quantity: 1
Weight Capacity (per screen): 2~12kg (4.4lbs~26.4lbs)
Laptop Weight Capacity: 9kg (19.8lbs )
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: N/A

LDT86-C024UCP-ML

Deluxe Mechanical Spring Dual Monitor Arm & Laptop Holder with USB-A/USB-C Ports (Pole Mounted)

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-35"
Screen Quantity: 1
Weight Capacity (per screen): 2~12kg (4.4lbs~26.4lbs)
Laptop Weight Capacity: 9kg (19.8lbs )
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: 1xUSB 3.0 Port, 1xTYPE-C

LDT86-C036P

Deluxe Mechanical Spring Triple Monitor Arm (Pole Mounted)

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-27"
Screen Quantity: 3
Weight Capacity (per screen): 2~9kg (4.4lbs~19.8lbs)
Laptop Weight Capacity: N/A
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: N/A

LDT86-C036UCP

Deluxe Mechanical Spring Triple Monitor Arm with USB-A/USB-C Ports (Pole Mounted)

Material: Aluminum, Steel, Plastic
Color: Gloss Grey, Black
Fit Screen Size: 17"-27"
Screen Quantity: 3
Weight Capacity (per screen): 2~9kg (4.4lbs~19.8lbs)
Laptop Weight Capacity: N/A
VESA Compatible: 75x75, 100x100
Tilt Range: +90°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Suggested Desktop Thickness: Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")
USB Port: 1xUSB 3.0 Port, 1xTYPE-C

click to view product pictures in table below

Item NO.	Material	Color	Fit Screen Size	Screen Quantity	Weight Capacity (per screen)	Laptop Weight Capacity	VESA Compatible	Tilt Range	Swivel Range	Screen Rotation	Suggested Desktop Thickness	USB Port
LDT86-C012	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-40"	1	2~12kg (4.4lbs~26.4lbs)	N/A	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	N/A
LDT86-C012UC	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-40"	1	2~12kg (4.4lbs~26.4lbs)	N/A	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	1xUSB 3.0 Port, 1xTYPE-C
LDT86-C024	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-35"	2	2~12kg (4.4lbs~26.4lbs)	N/A	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	N/A
LDT86-C024UC	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-35"	2	2~12kg (4.4lbs~26.4lbs)	N/A	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	1xUSB 3.0 Port, 1xTYPE-C
LDT86-C012P	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-40"	1	2~12kg (4.4lbs~26.4lbs)	N/A	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	N/A
LDT86-C012UCP	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-40"	1	2~12kg (4.4lbs~26.4lbs)	N/A	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	1xUSB 3.0 Port, 1xTYPE-C
LDT86-C024P	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-35"	2	2~12kg (4.4lbs~26.4lbs)	N/A	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	N/A
LDT86-C024UCP	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-35"	2	2~12kg (4.4lbs~26.4lbs)	9kg (19.8lbs )	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	1xUSB 3.0 Port, 1xTYPE-C
LDT86-C024P-ML	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-35"	1	2~12kg (4.4lbs~26.4lbs)	9kg (19.8lbs )	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	N/A
LDT86-C024UCP-ML	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-35"	1	2~12kg (4.4lbs~26.4lbs)	9kg (19.8lbs )	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	1xUSB 3.0 Port, 1xTYPE-C
LDT86-C036P	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-27"	3	2~9kg (4.4lbs~19.8lbs)	N/A	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	N/A
LDT86-C036UCP	Aluminum, Steel, Plastic	Gloss Grey, Black	17"-27"	3	2~9kg (4.4lbs~19.8lbs)	N/A	75x75, 100x100	+90°~-45°	+90°~-90°	+180°~-180°	Clamp:12~50mm Grommet:12~50mm (Clamp:0.47"~2" Grommet:0.47"~2")	1xUSB 3.0 Port, 1xTYPE-C
