Rugged Economical SlimBrace Heavy-Duty Gas Spring Monitor Arms OEM/ODM China Factory

LDT102 Series

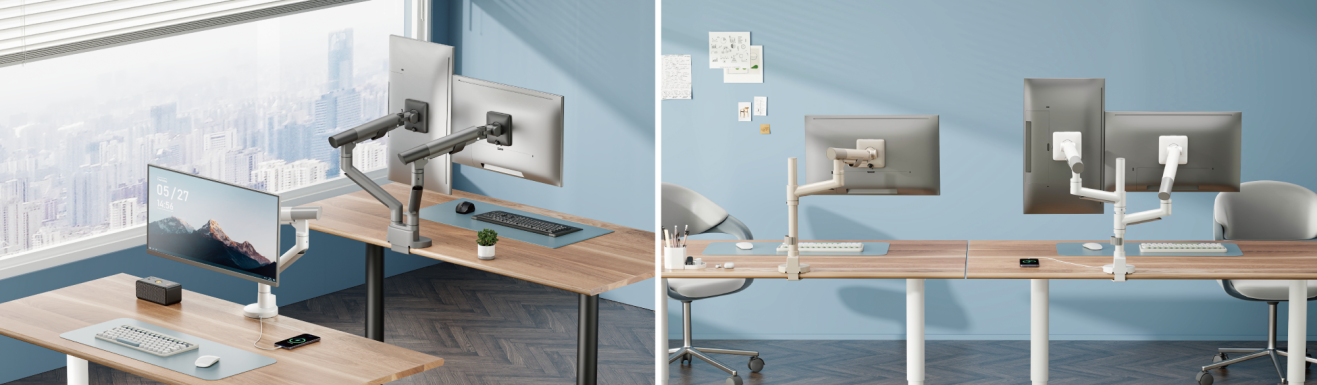

SlimBrace Heavy-Duty Gas Spring Monitor Arms

The LDT102 Series supports most 17"-49" monitors up to 20kg (44lbs) with confident stability and slim sophistication. The built-in one-way bearing ensures smooth, effortless tilting, and a precision spring tension system guarantees the smooth motions. Including models with convenient USB ports, data transfer and charging are facilitated. The topside installation means no crawling under desks, while quick-release joint and VESA plate make setup fast and packaging compact. Available in multiple colors to complement versatile spaces.

LDT102-C012

SlimBrace Heavy-Duty Gas Spring Monitor Arm

Fit Screen Size: 17"-49"
Screen Quantity: 1
Weight Capacity (per screen): 2~20kg (4.4~44lbs)
Weight Capacity for Curved Screen (per screen): 2~15kg (4.4~33lbs)
VESA Compatible: 75x75, 100x100
Tilt Range: +45°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
USB Port: No

LDT102-C012P

SlimBrace Heavy-Duty Pole-Mounted Gas Spring Monitor Arm

Fit Screen Size: 17"-49"
Screen Quantity: 1
Weight Capacity (per screen): 2~20kg (4.4~44lbs)
Weight Capacity for Curved Screen (per screen): 2~15kg (4.4~33lbs)
VESA Compatible: 75x75, 100x100
Tilt Range: +45°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
USB Port: No

LDT102-C012UC

SlimBrace Heavy-Duty Gas Spring Monitor Arm with USB-A & USB-C Ports

Fit Screen Size: 17"-49"
Screen Quantity: 1
Weight Capacity (per screen): 2~20kg (4.4~44lbs)
Weight Capacity for Curved Screen (per screen): 2~15kg (4.4~33lbs)
VESA Compatible: 75x75, 100x100
Tilt Range: +45°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
USB Port: 1xUSB 3.0 Port, 1xTYPE-C

LDT102-C012UCP

SlimBrace Heavy-Duty Pole-Mounted Gas Spring Monitor Arm with USB-A & USB-C Ports

Fit Screen Size: 17"-49"
Screen Quantity: 1
Weight Capacity (per screen): 2~20kg (4.4~44lbs)
Weight Capacity for Curved Screen (per screen): 2~15kg (4.4~33lbs)
VESA Compatible: 75x75, 100x100
Tilt Range: +45°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
USB Port: 1xUSB 3.0 Port, 1xTYPE-C

LDT102-C024

SlimBrace Dual-Screen Heavy-Duty Gas Spring Monitor Arm

Fit Screen Size: 17"-35"
Screen Quantity: 1
Weight Capacity (per screen): 2~20kg (4.4~44lbs)
Weight Capacity for Curved Screen (per screen): 2~15kg (4.4~33lbs)
VESA Compatible: 75x75, 100x100
Tilt Range: +45°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
USB Port: No

LDT102-C024P

SlimBrace Dual-Screen Heavy-Duty Pole-Mounted Gas Spring Monitor Arm

Fit Screen Size: 17"-49"
Screen Quantity: 2
Weight Capacity (per screen): 2~20kg (4.4~44lbs)
Weight Capacity for Curved Screen (per screen): 2~15kg (4.4~33lbs)
VESA Compatible: 75x75, 100x100
Tilt Range: +45°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
USB Port: N/A

LDT102-C024UC

SlimBrace Dual-Screen Heavy-Duty Gas Spring Monitor Arm with USB-A & USB-C Ports

Fit Screen Size: 17"-35"
Screen Quantity: 1
Weight Capacity (per screen): 2~20kg (4.4~44lbs)
Weight Capacity for Curved Screen (per screen): 2~15kg (4.4~33lbs)
VESA Compatible: 75x75, 100x100
Tilt Range: +45°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
USB Port: 1xUSB 3.0 Port, 1xTYPE-C

LDT102-C024UCP

SlimBrace Dual-Screen Heavy-Duty Pole-Mounted Gas Spring Monitor Arm with USB-A & USB-C Ports

Fit Screen Size: 17"-49"
Screen Quantity: 2
Weight Capacity (per screen): 2~20kg (4.4~44lbs)
Weight Capacity for Curved Screen (per screen): 2~15kg (4.4~33lbs)
VESA Compatible: 75x75, 100x100
Tilt Range: +45°~-45°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
USB Port: 1xUSB 3.0 Port, 1xTYPE-C

click to view product pictures in table below

Item NO.	Fit Screen Size	Screen Quantity	Weight Capacity (per screen)	Weight Capacity for Curved Screen (per screen)	VESA Compatible	Tilt Range	Swivel Range	Screen Rotation	USB Port
LDT102-C012	17"-49"	1	2~20kg (4.4~44lbs)	2~15kg (4.4~33lbs)	75x75, 100x100	+45°~-45°	+90°~-90°	+180°~-180°	No
LDT102-C012P	17"-49"	1	2~20kg (4.4~44lbs)	2~15kg (4.4~33lbs)	75x75, 100x100	+45°~-45°	+90°~-90°	+180°~-180°	No
LDT102-C012UC	17"-49"	1	2~20kg (4.4~44lbs)	2~15kg (4.4~33lbs)	75x75, 100x100	+45°~-45°	+90°~-90°	+180°~-180°	1xUSB 3.0 Port, 1xTYPE-C
LDT102-C012UCP	17"-49"	1	2~20kg (4.4~44lbs)	2~15kg (4.4~33lbs)	75x75, 100x100	+45°~-45°	+90°~-90°	+180°~-180°	1xUSB 3.0 Port, 1xTYPE-C
LDT102-C024	17"-35"	1	2~20kg (4.4~44lbs)	2~15kg (4.4~33lbs)	75x75, 100x100	+45°~-45°	+90°~-90°	+180°~-180°	No
LDT102-C024P	17"-49"	2	2~20kg (4.4~44lbs)	2~15kg (4.4~33lbs)	75x75, 100x100	+45°~-45°	+90°~-90°	+180°~-180°	N/A
LDT102-C024UC	17"-35"	1	2~20kg (4.4~44lbs)	2~15kg (4.4~33lbs)	75x75, 100x100	+45°~-45°	+90°~-90°	+180°~-180°	1xUSB 3.0 Port, 1xTYPE-C
LDT102-C024UCP	17"-49"	2	2~20kg (4.4~44lbs)	2~15kg (4.4~33lbs)	75x75, 100x100	+45°~-45°	+90°~-90°	+180°~-180°	1xUSB 3.0 Port, 1xTYPE-C
