PLB-CE8-0648 is a ceiling mount head designed to offer the ultimate in versatility and universal compatibility with load capacity of 50kg/110lbs. Connected with fixed or tilt ceiling plate and extension tube for flat/bevel roof installation. It is the perfect solution for retail and commercial displays, offering 5°tilt up and 12°tilt down even 360°rotation around the pole. Built-in level adjustment ensures perfect positioning. It combines advanced cable management features and ceiling mount covers to ensure an elegant and tidy look. Max. VESA 800x400 hole pattern.
- Home
- Products
- Prosumer TV Mounts
- TV Ceiling Mounts
- PLB-CE8-0648

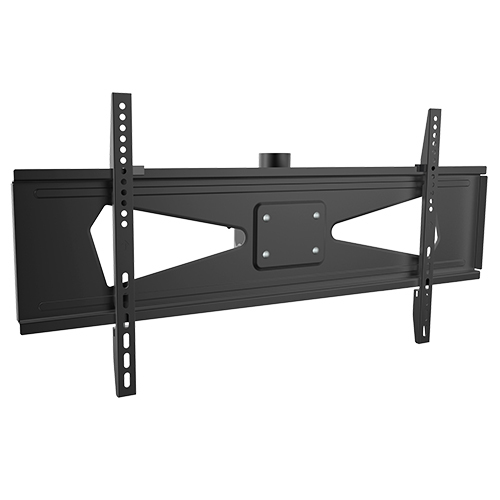

37"-70" TV Ceiling Mount VESA Panel
Compatible with PLB-CE8 Series TV Ceiling Mount
Description
Color:
Fine Texture Black
FEATURES
-
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
-
●360° Rotation Around the Pole: provides optimal viewing
-
●Leveling adjustments: allow TV to be perfectly positioned after hanging
-
●Cable Management: keeps everything organized
-
Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
-
360° Rotation Around the Pole: provides optimal viewing
-
Leveling adjustments: allow TV to be perfectly positioned after hanging
-
Cable Management: keeps everything organized
SPECIFICATIONS
Product Category: | TV Ceiling Mount |
Rank: | Standard |
Material: | Aluminum,Steel |
Surface Finish: | Powder Coating |
Color: | Fine Texture Black |

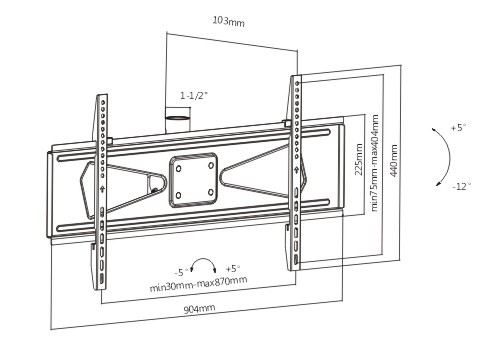

Dimensions: | 103x904x440mm (4.1"x35.6"x17.3") |
Fit Screen Size: | 37"-70" |
Fit Curved TV: | Yes |
Mounting Hole Pattern: | VESA & Universal |
VESA Compatible: | 200x200,400x200,300x300,400x400,600x400,800x400 |
Max. Mounting Hole: | 800x400 |
Weight Capacity: | 50kg (110lbs) |
Strength Tested: | 4 Times Approved |
Profile: | 103mm (4.1") |
Tilt Range: | +5°~ -12° |
Screen Level: | +5°~-5° |
Installation: | Solid Wall |
Cable Management: | Yes |
Product Category: | TV Ceiling Mount |
Rank: | Standard |
Material: | Aluminum,Steel |
Surface Finish: | Powder Coating |
Color: | Fine Texture Black |
Dimensions: | 103x904x440mm (4.1"x35.6"x17.3") |
Fit Screen Size: | 37"-70" |
Fit Curved TV: | Yes |
Mounting Hole Pattern: | VESA & Universal |
VESA Compatible: | 200x200,400x200,300x300,400x400,600x400,800x400 |
Max. Mounting Hole: | 800x400 |
Weight Capacity: | 50kg (110lbs) |
Strength Tested: | 4 Times Approved |
Profile: | 103mm (4.1") |
Tilt Range: | +5°~ -12° |
Screen Level: | +5°~-5° |
Installation: | Solid Wall |
Cable Management: | Yes |
