PRB-20-H

Universal Projector Interface Bracket

Compatible with North American Standard 1.5’’ NPT Pipe
Description

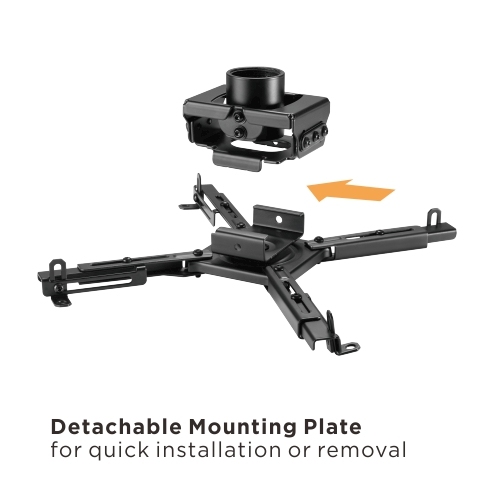

Using a North American standard 1.5’’ NPT pipe size, the PRB-20-H interface bracket is compatible with various extension poles and ceiling plates. Whether the installation required is on a flat or pitched ceiling, the PRB-20-H interface bracket provides endless possibilities for customization. Manufactured using high-grade steel, for durability and strong support for projectors up to 35kg/77lbs. A quick release function allows the projector to be installed in a few minutes and removed for maintenance without having to re-align the projector. Multiple adjustments provide the best projected image for the optimum viewing experience.

Tag:
Color:

Matte Black

FEATURES
SPECIFICATIONS
RESOURCES
  • PRB-20-H-Universal Projector Interface Bracket

    PRB-20-H-Universal Projector Interface Bracket
0

    Drag to Spin

    PRB-20-H

    Universal Projector Interface Bracket

    Compatible with North American Standard 1.5’’ NPT Pipe

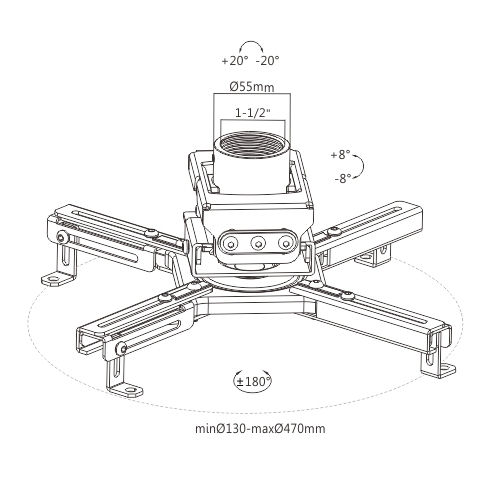

    • Weight Capacity:
    • 35kg (77lbs)
    • Mounting Range:
    • 130~470mm (5.1"~18.5")
    • Mounting Hole Dimension:
    • Tilt Range:
    • +20°~-20°
    • Swivel Range:
    • +8°~-8°
    • Rotation:
    • +180°~-180°
