Large Smart Electric TV Ceiling Mount with Flat and Pitched Ceiling Compatibility & Double Stud Installation Option PLB-M0748D Fits TV sizes up to 86" from china(chinese)

PLB-M0748D

Large Smart Electric TV Ceiling Mount with Flat and Pitched Ceiling Compatibility & Double Stud Installation Option

Fits TV sizes up to 86"

Description

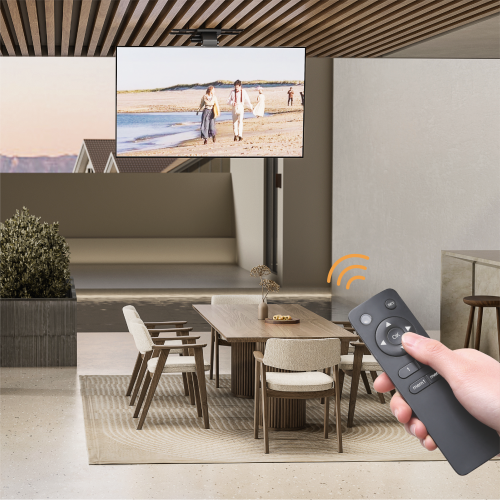

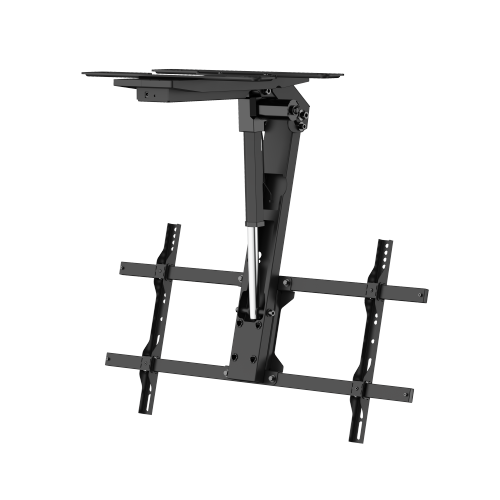

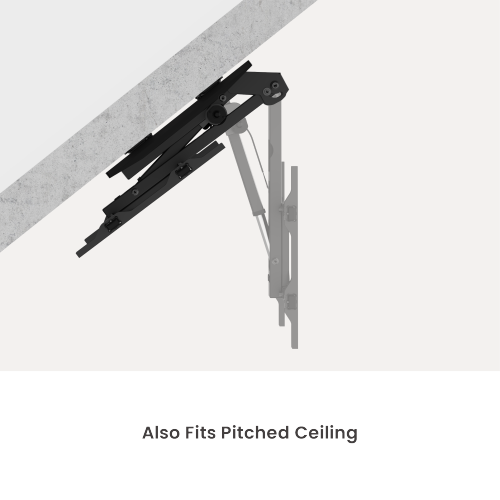

Unrestricted to spaces, PLB-M0748D Large Smart Electric TV Ceiling Mount with Flat and Pitched Ceiling Compatibility & Double Stud Installation Option aims to provide premium coziness for both indoor and outdoor viewing experiences. Via Voice/Tuya App/Remote Control, the TV positions are effortlessly adjusted. Moreover, the mounts can move quietly at a quicker speed with the superior motor and electric push rod. The tilting design provides easy positioning for better viewing, and the foldable design allows the mounts to flip up when not in use. With its compatibility with pitched ceilings and double-stud installation option, PLB-M0748D fits different ceiling structures. After installation, TV’s balance is ensured by levelling adjustments.

Tag:

Color:

Matte Black

Add to Inquiry

Add to Compare

View Series

Duty Calculator

FEATURES

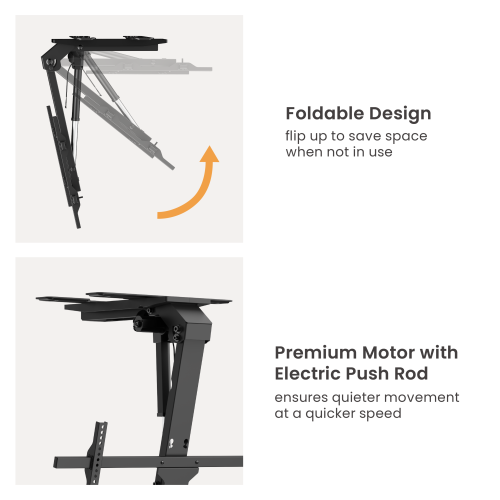

●Premium Motor with Electric Push Rod: ensures quieter movement at a quicker speed

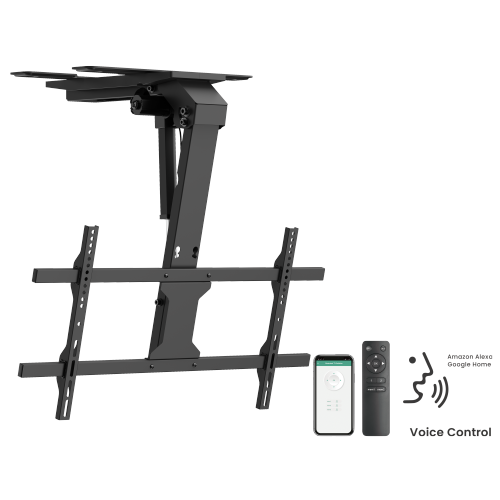

●Remote Control Included: for easy movements
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Leveling adjustments: allow TV to be perfectly positioned after hanging

●App Remote Control: remote powered by Tuya App
●Smart Voice Control: effortlessly adjust the position of the TV with a simple voice command
●Flip Down Design: allows for easy storage, cleared up space and out-of-way safety

Premium Motor with Electric Push Rod: ensures quieter movement at a quicker speed
App Remote Control: remote powered by Tuya App
Remote Control Included: for easy movements
Smart Voice Control: effortlessly adjust the position of the TV with a simple voice command
Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
Flip Down Design: allows for easy storage, cleared up space and out-of-way safety
Leveling adjustments: allow TV to be perfectly positioned after hanging

SPECIFICATIONS

Product Category:	Motorized TV Ceiling Mount
Rank:	Premium
Material:	Steel,Plastic,Aluminum
Metal Sheet Thickness:	Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet)
Surface Finish:	Powder Coating
Color:	Matte Black
Fit Screen Size:	43"-86"
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	200x100,200x200,300x200,400x200,300x300,400x300,600x200,400x400,600x300,600x400,800x400
Max. Mounting Hole:	800x400
Weight Capacity:	45kg (99lbs)
Strength Tested:	4 Times Approved
Profile:	139mm (5.5")
Tilt Range:	0~-80°

Screen Level:	+2°~-2°

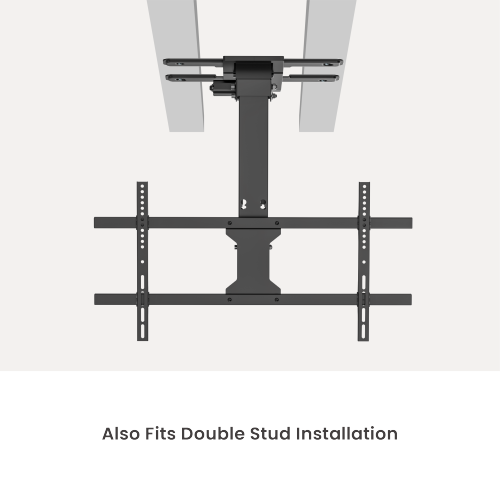

Installation:	Double Stud(406mm),Ceiling Mounted
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
AV Component Shelf:	No
Cable Management:	Yes
Anti-theft:	No
Power Supply:	Input:AC 100~240V,50/60Hz;Output:DC 29V, 1.8A
Power Cord Length:	1.8m (5.9ft)
Controller Type:	Application Control,Radio Frequency(RF) Remote
Bubble Level:	No
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
Certification:	CE,FCC,RoHS
Silk Screen:	Can be silkscreen printed

Product Category:	Motorized TV Ceiling Mount
Rank:	Premium
Material:	Steel,Plastic,Aluminum
Metal Sheet Thickness:	Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet)
Surface Finish:	Powder Coating
Color:	Matte Black
Fit Screen Size:	43"-86"
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	200x100,200x200,300x200,400x200,300x300,400x300,600x200,400x400,600x300,600x400,800x400
Max. Mounting Hole:	800x400
Weight Capacity:	45kg (99lbs)
Strength Tested:	4 Times Approved
Profile:	139mm (5.5")
Tilt Range:	0~-80°

Screen Level:	+2°~-2°
Installation:	Double Stud(406mm),Ceiling Mounted
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
AV Component Shelf:	No
Cable Management:	Yes
Anti-theft:	No
Power Supply:	Input:AC 100~240V,50/60Hz;Output:DC 29V, 1.8A
Power Cord Length:	1.8m (5.9ft)
Controller Type:	Application Control,Radio Frequency(RF) Remote
Bubble Level:	No
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
Certification:	CE,FCC,RoHS
Silk Screen:	Can be silkscreen printed
