Heavy-Duty Steel Full-Motion TV Wall Mount LPA69-466 For most 37"-80" Flat Panel TVs from china(chinese)

LPA69-466

Heavy-Duty Steel Full-Motion TV Wall Mount

For most 37"-80" Flat Panel TVs

Description

The LPA69-466 Heavy-Duty Full-Motion TV Wall Mount handles most TVs from most 37" to 80" and easily holds up to 60kg/132lbs. Its full-motion capabilities allow a +5°~-15° tilting and a +60°~-60° swiveling of your TV, maximizing viewing flexibility from anywhere in the room. A +3°~-3° level adjustment combined with an internal bubble level ensures the TV is perfectly positioned post installation. Integrated cable clip keeps cables organized and protected.

Tag:

Color:

Fine Texture Black

Add to Inquiry

Add to Compare

View Series

Duty Calculator

FEATURES

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Cable Management: keeps everything organized

Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Cable Management: keeps everything organized

SPECIFICATIONS

Product Category:	Full-motion TV Wall Mount
Rank:	Standard
Material:	Steel,Plastic
Metal Sheet Thickness:	Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet)
Pipe Size:	30x20x1.5mm Square Steel Tube,40x20x1.2mm Square Steel Tube (1.2"x0.79"x0.059" Square Steel Tube,1.6"x0.79"x0.047" Square Steel Tube)
Surface Finish:	Powder Coating
Color:	Fine Texture Black
Dimensions:	402x710x430mm (15.8"x28"x16.9")
Fit Screen Size:	37"-80"
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	200x200,300x200,400x200,300x300,400x300,400x400,600x400
Max. Mounting Hole:	600x400
Weight Capacity:	60kg (132lbs)
Strength Tested:	3 Times Approved

Profile:	58~402mm (2.3"~15.8")
Tilt Range:	+5°~-15°
Swivel Range:	+60°~-60°
Screen Level:	+3°~-3°
Screen Freely Tilting:	No
Installation:	Solid Wall,Double Stud(406mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
AV Component Shelf:	No
Direction Indicator:	Yes
Cable Management:	Yes
Anti-theft:	No
Power Supply:	No
Bubble Level:	No

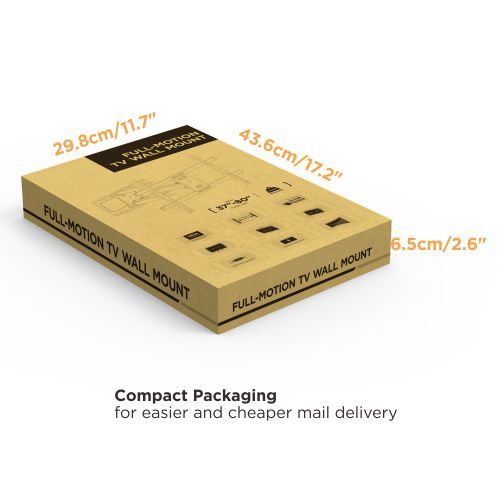

Accessory Kit Package:	Compartment Polybag
