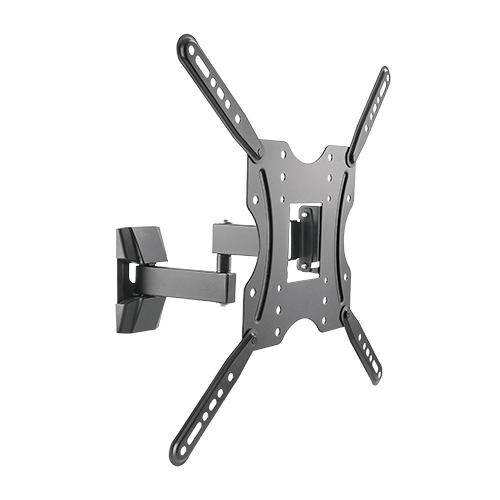

KLA27-442

Super Economy Full-motion TV Wall Mount

For most 32"-55" LED, LCD Flat Panel TVs

Description

The KLA27-442 super economy full-motion mount accommodates most 32"-55" flat panel TVs up to 20kg/44lbs. Its lengthened arms extend out 300mm from wall and allows full-motion capabilities. Full motion allows maximum flexibility — tilts and swivel your TV for easy viewing from any seat in a room.

Tag:

Color:

Fine Texture Black

Add to Inquiry

Add to Compare

View Series

Duty Calculator

FEATURES

●Easy-Grip Knobs: for quick tilt and lock
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Open Architecture: provides increased ventilation and easier access to wires

Easy-Grip Knobs: for quick tilt and lock
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Open Architecture: provides increased ventilation and easier access to wires

SPECIFICATIONS

Product Category:	Full-motion TV Wall Mount
Rank:	Economy
Material:	Steel,Plastic
Metal Sheet Thickness:	VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2.3mm pickling sheet (VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.091" pickling sheet)
Pipe Size:	40x20mm (1.6"x0.79")
Surface Finish:	Powder Coating
Color:	Fine Texture Black

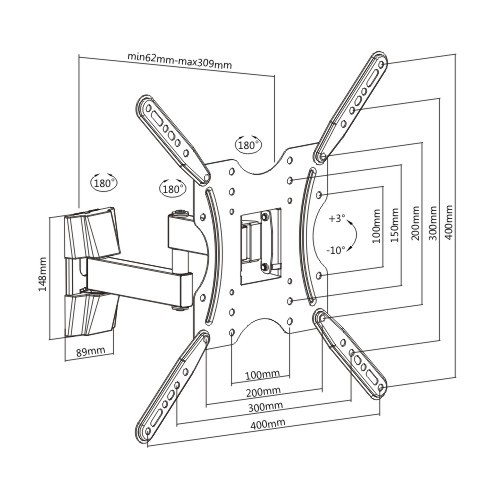

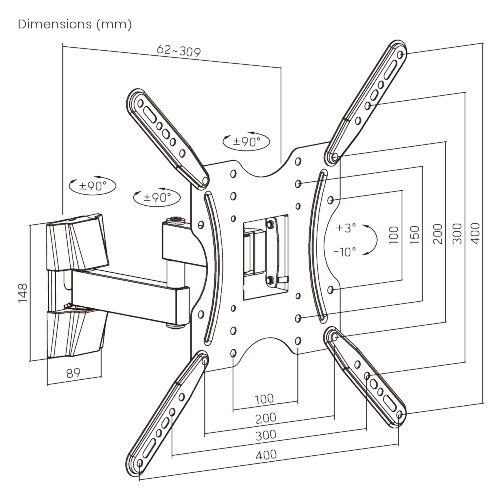

Dimensions:	309x431x431mm (12.2"x17"x17")
Fit Screen Size:	32"-55"
Fit Curved TV:	No
Mounting Hole Pattern:	VESA Only
VESA Compatible:	100x100,200x100,200x200,300x200,400x200,300x300,400x400
Max. Mounting Hole:	400x400

Weight Capacity:	20kg (44lbs)
Strength Tested:	2 Times Approved
Profile:	62~309mm (2.4"~12.2")
Tilt Range:	＋3°～-10°
Swivel Range:	+90°~-90°
Screen Freely Tilting:	No
Installation:	Solid Wall
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	No
Anti-theft:	No
Bubble Level:	No
Accessory Kit Package:	Compartment Polybag

Product Category:	Full-motion TV Wall Mount
Rank:	Economy
Material:	Steel,Plastic
Metal Sheet Thickness:	VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2.3mm pickling sheet (VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.091" pickling sheet)
Pipe Size:	40x20mm (1.6"x0.79")
Surface Finish:	Powder Coating
Color:	Fine Texture Black
Dimensions:	309x431x431mm (12.2"x17"x17")
Fit Screen Size:	32"-55"
Fit Curved TV:	No
Mounting Hole Pattern:	VESA Only
VESA Compatible:	100x100,200x100,200x200,300x200,400x200,300x300,400x400
Max. Mounting Hole:	400x400

Weight Capacity:	20kg (44lbs)
Strength Tested:	2 Times Approved
Profile:	62~309mm (2.4"~12.2")
Tilt Range:	＋3°～-10°
Swivel Range:	+90°~-90°
Screen Freely Tilting:	No
Installation:	Solid Wall
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	No
Anti-theft:	No
Bubble Level:	No
Accessory Kit Package:	Compartment Polybag
