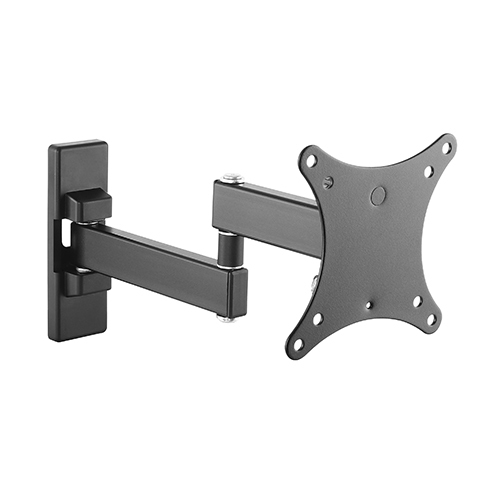

KLA26-112

Super Economy Full-motion TV Wall Mount

For most 13"-27" LED, LCD Flat Panel TVs

Description

For most 13"-27" LED, LCD Flat Panel TVs
The KLA26-112 full-motion mount lets you enjoy a great picture no matter where you watch. It accommodates most 13"-27" flat panel TVs up to 15kg/33lbs. Tilt, swivel, extend and level your TV without the need for tools. Its post-installation leveling adjustment ensures the TV is perfectly positioned on the wall.

Tag:

Color:

Fine Texture Black

Add to Inquiry

Add to Compare

View Series

Duty Calculator

FEATURES

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Easy Assembly: Installation is as easy as 1-2-3

Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Leveling adjustments: allow TV to be perfectly positioned after hanging
Easy Assembly: Installation is as easy as 1-2-3

SPECIFICATIONS

Product Category:	Full-motion TV Wall Mount
Rank:	Economy
Material:	Steel,Plastic
Metal Sheet Thickness:	VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (VESA Panel THK=0.079" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet)
Pipe Size:	30x15mm (1.2"x0.59")
Surface Finish:	Powder Coating
Color:	Fine Texture Black

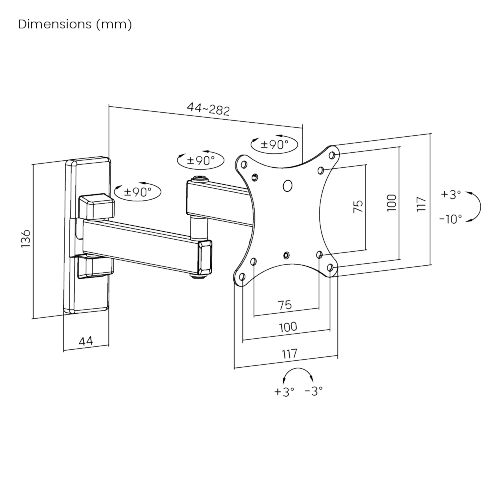

Dimensions:	282x136x117mm (11.1"x5.4"x4.6")
Fit Screen Size:	13"-27"
Fit Curved TV:	No
Mounting Hole Pattern:	VESA Only
VESA Compatible:	75x75,100x100
Max. Mounting Hole:	100x100
Weight Capacity:	15kg (33lbs)

Strength Tested:	2 Times Approved
Profile:	44~282mm (1.7"~11.1")
Tilt Range:	＋3°～-10°
Swivel Range:	+90°~-90°
Screen Level:	+3°~-3°
Screen Freely Tilting:	No
Installation:	Solid Wall,Single Stud
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	No
Anti-theft:	No
Bubble Level:	No
Accessory Kit Package:	Compartment Polybag

Product Category:	Full-motion TV Wall Mount
Rank:	Economy
Material:	Steel,Plastic
Metal Sheet Thickness:	VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (VESA Panel THK=0.079" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet)
Pipe Size:	30x15mm (1.2"x0.59")
Surface Finish:	Powder Coating
Color:	Fine Texture Black
Dimensions:	282x136x117mm (11.1"x5.4"x4.6")
Fit Screen Size:	13"-27"
Fit Curved TV:	No
Mounting Hole Pattern:	VESA Only
VESA Compatible:	75x75,100x100
Max. Mounting Hole:	100x100
Weight Capacity:	15kg (33lbs)

Strength Tested:	2 Times Approved
Profile:	44~282mm (1.7"~11.1")
Tilt Range:	＋3°～-10°
Swivel Range:	+90°~-90°
Screen Level:	+3°~-3°
Screen Freely Tilting:	No
Installation:	Solid Wall,Single Stud
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	No
Anti-theft:	No
Bubble Level:	No
Accessory Kit Package:	Compartment Polybag
