Modern Ultra-Slim Full-Motion TV Wall Mount LPA83-466 For most 43"-90" TVs from china(chinese)

LPA83-466

Modern Ultra-Slim Full-Motion TV Wall Mount

For most 43"-90" TVs

Description

The LPA83-466 stands out with its modern and professional design, featuring a smooth surface finish that elevates the room's overall aesthetics. Its slim profile allows the TV to be mounted closer to the wall, giving a clean and stylish appearance. Additionally, users can easily adjust the mount to find the perfect viewing angle for an enhanced entertainment experience.

Tag:

Color:

Fine Texture Black

Add to Inquiry

Add to Compare

View Series

Duty Calculator

FEATURES

●Ultra-slim design
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Folding Design: saves space (keeping the screen and arm out of the way when not in use)

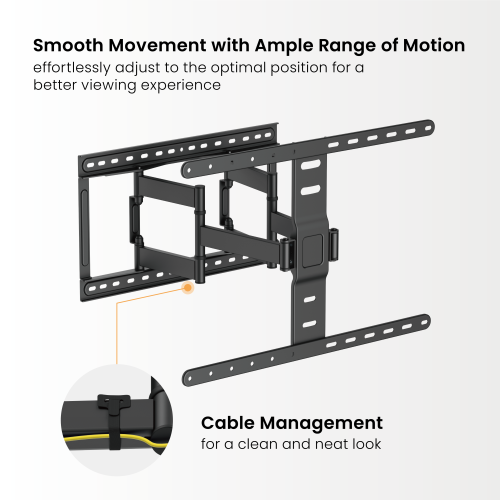

●Cable Management: keeps everything organized

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Easy Assembly: Installation is as easy as 1-2-3

Ultra-slim design
Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Leveling adjustments: allow TV to be perfectly positioned after hanging
Folding Design: saves space (keeping the screen and arm out of the way when not in use)
Easy Assembly: Installation is as easy as 1-2-3
Cable Management: keeps everything organized

SPECIFICATIONS

Product Category:	Full-motion TV Wall Mount
Rank:	Standard
Material:	Steel
Metal Sheet Thickness:	Bracket Arm THK=3.0mm pickling sheet,VESA Panel THK=2.5mm pickling sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.12" pickling sheet,VESA Panel THK=0.098" pickling sheet,Wall Plate THK=0.098" pickling sheet)
Pipe Size:	40x15x1.2mm Square Steel Tube (1.6"x0.59"x0.047" Square Steel Tube)
Surface Finish:	Powder Coating
Color:	Fine Texture Black

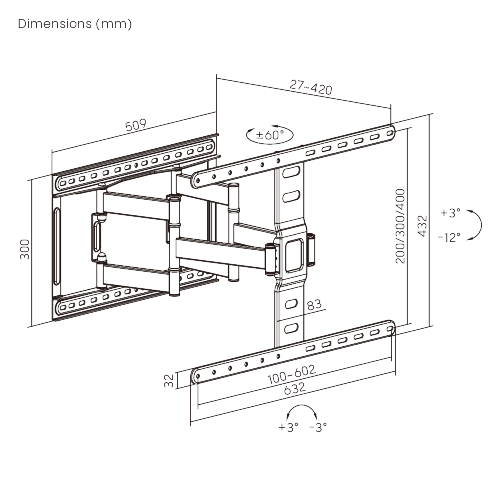

Dimensions:	420x632x432mm (16.5"x24.9"x17")
Fit Screen Size:	43"-90"
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	100x200,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,400x400,600x300,600x400
Max. Mounting Hole:	602x400
Weight Capacity:	60kg (132lbs)
Strength Tested:	4 Times Approved

Profile:	27~420mm (1.1"~16.5")

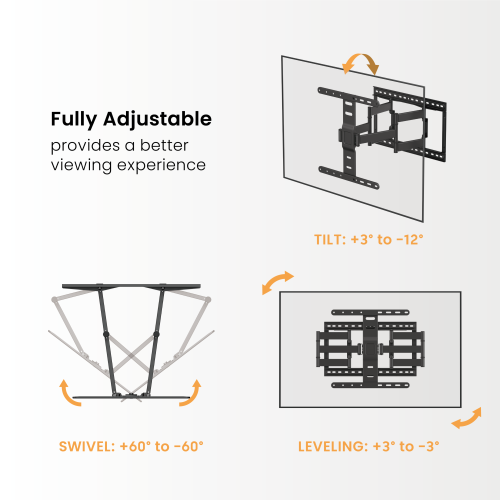

Tilt Range:	+3°~-12°
Swivel Range:	+60°~-60°
Screen Level:	+3°~-3°
Screen Freely Tilting:	Yes
Installation:	Solid Wall,Double Stud(406mm/450mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
AV Component Shelf:	No
Direction Indicator:	Yes
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
Silk Screen:	Can be silkscreen printed

Product Category:	Full-motion TV Wall Mount
Rank:	Standard
Material:	Steel
Metal Sheet Thickness:	Bracket Arm THK=3.0mm pickling sheet,VESA Panel THK=2.5mm pickling sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.12" pickling sheet,VESA Panel THK=0.098" pickling sheet,Wall Plate THK=0.098" pickling sheet)
Pipe Size:	40x15x1.2mm Square Steel Tube (1.6"x0.59"x0.047" Square Steel Tube)
Surface Finish:	Powder Coating
Color:	Fine Texture Black
Dimensions:	420x632x432mm (16.5"x24.9"x17")
Fit Screen Size:	43"-90"
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	100x200,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,400x400,600x300,600x400
Max. Mounting Hole:	602x400
Weight Capacity:	60kg (132lbs)
Strength Tested:	4 Times Approved

Profile:	27~420mm (1.1"~16.5")
Tilt Range:	+3°~-12°
Swivel Range:	+60°~-60°
Screen Level:	+3°~-3°
Screen Freely Tilting:	Yes
Installation:	Solid Wall,Double Stud(406mm/450mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
AV Component Shelf:	No
Direction Indicator:	Yes
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
Silk Screen:	Can be silkscreen printed
