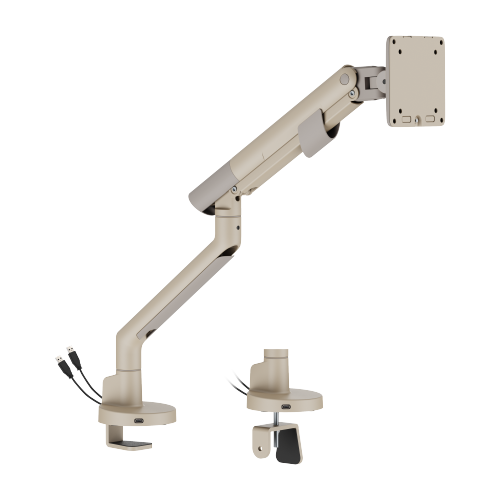

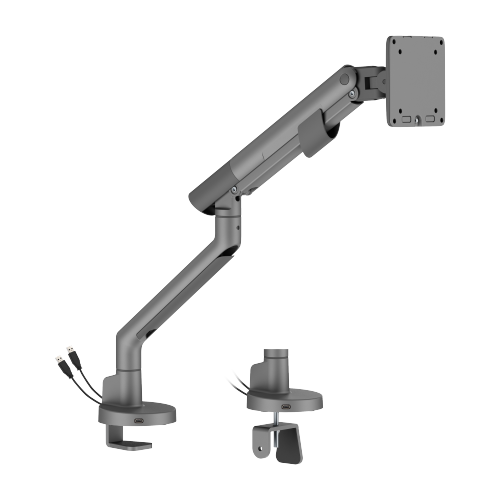

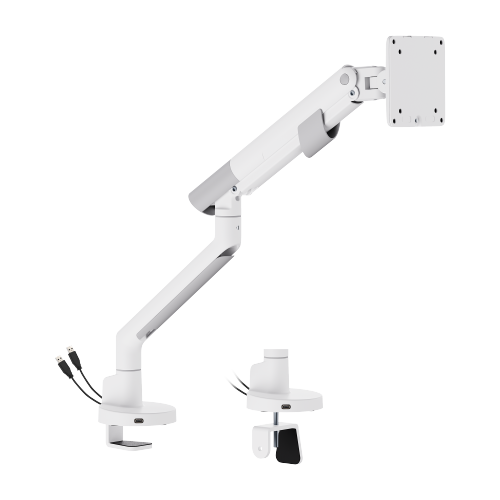

Nova Slim Mechanical Spring Monitor Arm with USB-A & USB-C Ports LDT105-C012UC Slim, Sleek, Smooth from china(chinese)

LDT105-C012UC

Nova Slim Mechanical Spring Monitor Arm with USB-A & USB-C Ports

Slim, Sleek, Smooth

Description

The LDT105-C012UC features a slim, modern profile that seamlessly complements contemporary workspaces. Its precision-engineered mechanical spring system enables smooth and reliable adjustments for both height and angle, ensuring ergonomic comfort throughout the day. An integrated tension indicator allows for accurate spring tension calibration—ideal for multi-monitor setups. Designed with efficiency in mind, the quick-release VESA plate and joint make installation fast and hassle-free, while the topside mounting design eliminates the need to crawl under the desk. What's more, equipped with a smart base featuring USB-A and USB-C ports, it supports data transfer and charging.

Tag:

Color:

Fine Texture White

Fine Texture Light Brown

Space Grey

Add to Inquiry

Add to Compare

View Series

Duty Calculator

FEATURES

●Quick-Release VESA Plate: for easy installation and removal
●Tension Indicator: designed for spring tension alignment when installing multiple monitors
●Wide Range of Movements: allows screen tilting, swiveling, rotation and height adjustments for optimum viewing
●Smart Base with USB-A & USB-C Ports: snap-off plates on the base provide data throughput or to charge devices

●Built-in Spring Tension Mechanism: for perfect weight adjustments
●Installs from Top Side: installs entirely from above the desk surface
●180° Rotation Stop: prevents monitor arm from swinging into screens or walls

Quick-Release VESA Plate: for easy installation and removal
Built-in Spring Tension Mechanism: for perfect weight adjustments
Tension Indicator: designed for spring tension alignment when installing multiple monitors
Installs from Top Side: installs entirely from above the desk surface
Wide Range of Movements: allows screen tilting, swiveling, rotation and height adjustments for optimum viewing
180° Rotation Stop: prevents monitor arm from swinging into screens or walls
Smart Base with USB-A & USB-C Ports: snap-off plates on the base provide data throughput or to charge devices

SPECIFICATIONS

Product Category:	Mechanical Spring Monitor Arm
Rank:	Standard
Material:	Aluminum,Steel,Plastic
Surface Finish:	Powder Coating
Color:	Fine Texture White,Fine Texture Light Brown,Space Grey

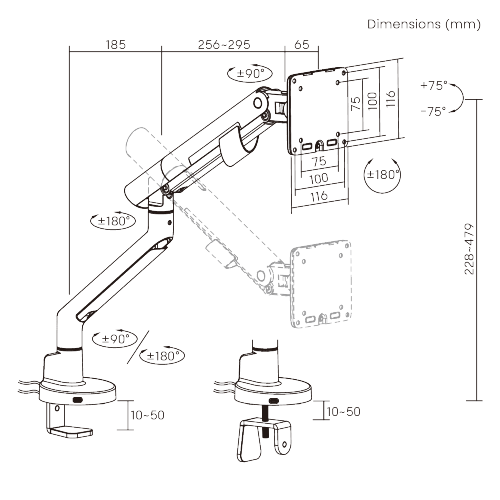

Dimensions:	116x545x550mm (4.6"x21.5"x21.7")
Fit Screen Size:	17"-40"
Fit Curved Monitor:	Yes
Screen Quantity:	1
Weight Capacity (per screen):	2~11kg (4.4lbs~24.2lbs)
Weight Capacity for Curved Screen (per screen):	2~10kg (4.4lbs~22lbs)

VESA Compatible:	75x75,100x100
Tilt Range:	+75°~-75°
Swivel Range:	+90°~-90°
Screen Rotation:	+180°~-180°
Arm Full Extension:	480mm (18.9")
Installation:	Clamp,Grommet
Suggested Desktop Thickness:	Clamp:10~50mm Grommet:10~50mm (Clamp:0.39"~2" Grommet:0.39"~2")
Quick Release VESA Plate:	Yes
USB Port:	1xUSB 3.0 Port,1xTYPE-C
Cable Management:	Yes

Product Category:	Mechanical Spring Monitor Arm
Rank:	Standard
Material:	Aluminum,Steel,Plastic
Surface Finish:	Powder Coating
Color:	Fine Texture White,Fine Texture Light Brown,Space Grey
Dimensions:	116x545x550mm (4.6"x21.5"x21.7")
Fit Screen Size:	17"-40"
Fit Curved Monitor:	Yes
Screen Quantity:	1
Weight Capacity (per screen):	2~11kg (4.4lbs~24.2lbs)
Weight Capacity for Curved Screen (per screen):	2~10kg (4.4lbs~22lbs)

VESA Compatible:	75x75,100x100
Tilt Range:	+75°~-75°
Swivel Range:	+90°~-90°
Screen Rotation:	+180°~-180°
Arm Full Extension:	480mm (18.9")
Installation:	Clamp,Grommet
Suggested Desktop Thickness:	Clamp:10~50mm Grommet:10~50mm (Clamp:0.39"~2" Grommet:0.39"~2")
Quick Release VESA Plate:	Yes
USB Port:	1xUSB 3.0 Port,1xTYPE-C
Cable Management:	Yes
